Pozostałe elementy do budowy rozdzielnic

Rozdzielacz instalacyjny - Profi Plus (rozdzielacz stojący, rozdzielacze natynkowe, wzgl. podtynkowe)

Rozdzielacz instalacyjny - Profi Plus (rozdzielacz stojący, rozdzielacze natynkowe, wzgl. podtynkowe)

Adjustable depth angle bracket for mounting components with a greater depth on the BPZ-MSW.

Corner tower kit, BPZ-CTS-L, long, pair (for left and right), incl. screws, directly mounted on BP-MF base frame, for mounting BPZ-MSW assembly side panels in wall-mounting and floor standing distribution boards, with pre-drilled holes for mounting the BPZ-TSB terminal support rail. Long corner tower for assembling surface-mounted distribution boards, rear or MSW configuration, equipment supplier: 2 corner towers (for left and right), various mounting accessories

Meter trough, BPZ-MT-… meter trough for directly mounting power meters or mounting ZBR meter plates, width 320 mm, height 400mm, 1 meter mounting unit, material characteristic: sheet steel, powder-spray painted, RAL 7035, equipment supplied: 1 meter trough, various mounting accessories

Terminal support, BPZ-TSB, for mounting (KLV-)KL terminal bars, width 1000 mm, for wall-mounting and floor standing distribution boards, mounted directly on BPZ-CTS corner tower kit. The PE conductor can be installed directly (conductive connection with distribution board), neutral conductor installation with KT terminal supports, material characteristic: sheet steel, zinc coated, equipment supplied: 1 terminal support rail, various mounting accessories

Type XSPBAC base cover plate without foam with up to IP20, Width 800mm, for 110 mm depth, RAL 7035

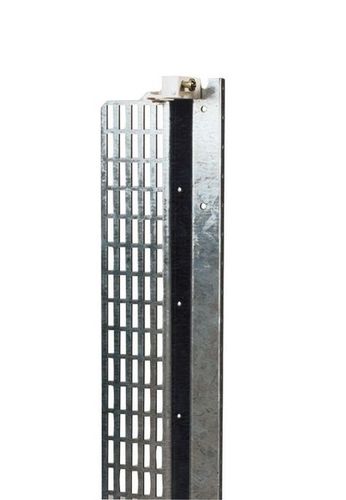

Ściana boczna montażowa

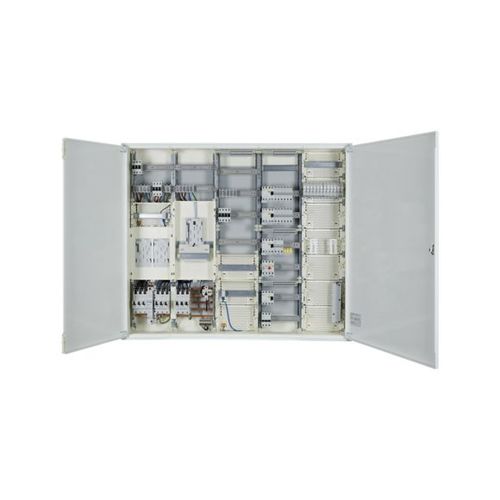

Metering distribution board 2K/flange

Type XSPBAC base cover plate without foam with up to IP20, Width 600mm, for 110 mm depth, RAL 7035

Wall trough, for 3 steps system, BPZ-WB3S, width 800 mm, height 1060mm, depth 180 mm, knockout that is easy to knock out, designed for installation in 3-component flush-mounted door frame, material characteristic: sheet steel, zinc coated, equipment supplied: 1 wall trough, various mounting accessories

Wall trough, for 3 steps system, BPZ-WB3S, width 1200 mm, height 2060mm, depth 240 mm, knockout that is easy to knock out, designed for installation in 3-component flush-mounted door frame, material characteristic: sheet steel, zinc coated, equipment supplied: 1 wall trough, various mounting accessories

Mounting kit for 3-pole 630-A SASY60i IEC busbar supports, BPZ-BR/SASY/H... for mounting BBS-3/FL busbar supports, mounted on base frame, height 300mm, width 1000 mm, sheet steel front plate, powder-spray painted, RAL 7035, mounting bracket: galvanized sheet steel, equipment supplied: 3 fixing brackets, 2 profiles, 1 front plate, various mounting accessories

Flansza przelotowa z materiału izolacyjnego, z obwodową piankową uszczelką, 40 kabli, 10-13mm ? , 4 kabli, 17-21mm ? , 2 kabli, 27-30mm ?

Meter trough, BPZ-MT-… meter trough for directly mounting power meters or mounting ZBR meter plates, width 520 mm, height 400mm, 2 meter mounting units, material characteristic: sheet steel, powder-spray painted, RAL 7035, equipment supplied: 1 meter trough, various mounting accessories

BPZ-TA/2 mounting tower for mounting DIN-rails (without BPZ-MSW), adjustable depth, height-adjustable in 12-mm increments, equipment supplied: 2 adjustable corner towers, various mounting accessories

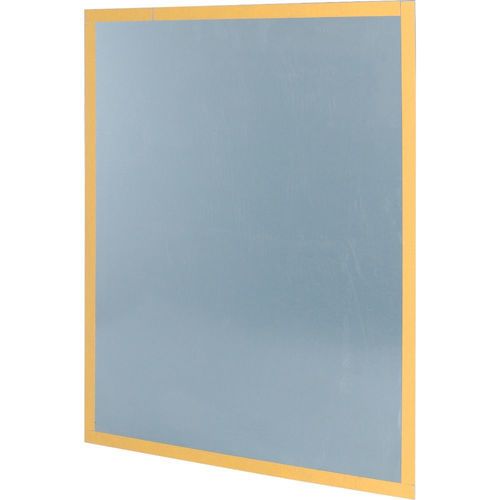

Rear panel, BPZ-RP for flush-mount distribution boards BPZ-WB3S, width 600 mm, height 760mm, steel plate, zinc coated, sheet thickness 1 mm, installed with adhesive tape, equipment supplied: 1 back plate, notice: Make sure to connect the back plate (sheet steel) to the earthing circuit with a rivet or screw connection
