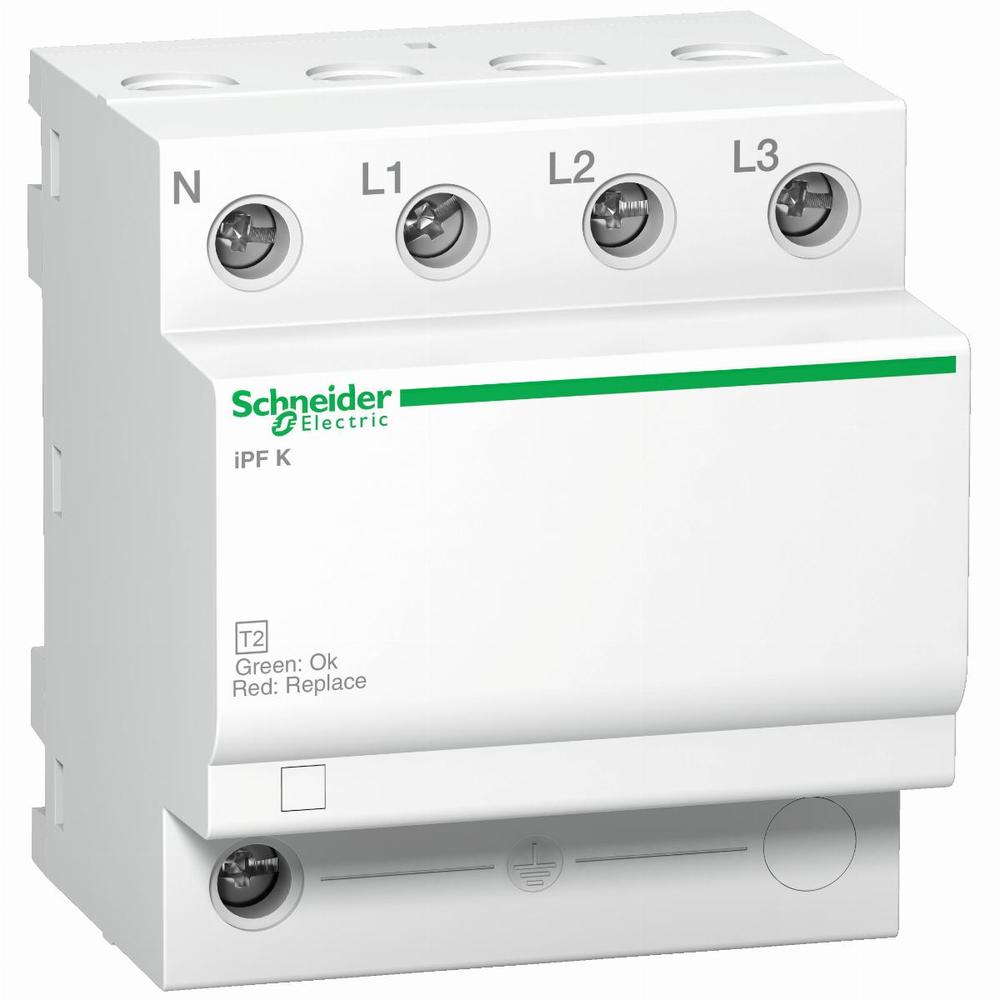

ogranicznik przepięć iPF40-T2-3P+N

This Acti9 iPF K 40 product is a modular surge arrester. It protects 3P installations. The Imax maximum discharge current is 40kA .The In nominal discharge current is 15kA. The iPF multi-pole single-piece surge arrester range is adapted for earthing systems: TT, TN-S, TN-C. This type 2 incoming protection surge arrester iPF40r is recommended for a high risk level. The Uc maximum continuous operating voltage in DM common mode (between phase and neutral) is 260VAC. The Uc maximum continuous operating voltage in DM differential mode (between earth and neutral) is 340VAC. The Up Voltage protection level in CM common mode (between phase and neutral) is 1.5kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The weight is 420g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standard.
